VCi-3™

VCi-3™ cable identification & phasing

used during installation or maintenance works on de-energized three phase systems. The VCi-3™ system is designed for cable and phase identification, mainly for instal­lation or maintenance purposes on three-phase electrical networks during power shutdowns.

The transmitter module injects a low current on the cable conductors by direct con­tact or magnetic clamps methods. A voice message is recorded by the user and will be transmitted along with digital signals. Groundings stay connected at both ends of the three-phase circuit during the test.

The detector module is used at the other end of the cable system. An array of sensors is available for cable and phase identification on different types of cables such as paper lead insulated cable (PILC), trench cables, cut cables, cable splices, and more. The detector module’s gain will be adjusted for optimal detection. The bar graph will display the strength of the detected signal. Indicators will display the detected phase, either A, B or C. The recorded voice message will be played from the detector’s speaker avoiding false detection.

Information

  • Unique balanced injection system that eliminates signal bleeding on other wires
  • Three different frequencies to identify each phase
  • Easy to install and operate
  • Extended range: up to 10 km (6 miles) of working distance
  • Tone transmission for more than 8 hours
  • Lightweight and compact
  • Optional magnetic sensing transducer
  • Phase detection by transmitter tone presence or absence
  • Digital filtering of network harmonics
  • Unique dual grounded method

Video

Accessories

Medium Case

Hard shell transportation case for VCI-3 system.

Medium size, fits most applications.

Part number: BOX-75.

External dimensions: 46x35x18 cm / 18x14x7 inches

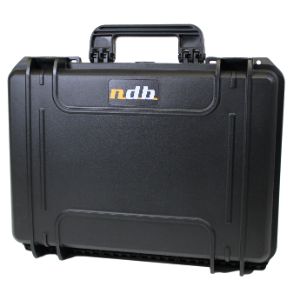

Large Case

Hard shell transportation case for VCI-3 system.

Large size, fits most applications where many accessories are required.

Part number: BOX-110.

External dimensions: 56x43x20 cm / 22x17x8 inches

Replacement Battery Set

Replacement battery set for VCI-3’s transmitter module.

Use OEM ndb technologies parts maximum safety and performance.

Part number: VCI-BAT.

Set of seven rechargeable NiMH AA batteries

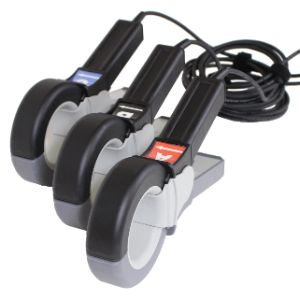

Transmitter Clamps

When it comes to safety, magnetic injection is the preferred method as groundings stays installed at all time. Ease your cable identification routine with ndb’s VCI clamp set.

Part number: VCI-3-2.125 clamps

Clamp opening: 54mm (2.125inches)

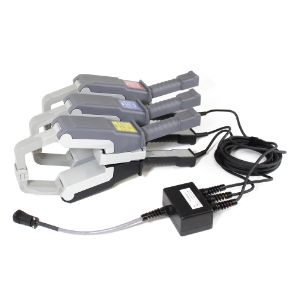

Transmitter Clamps Large Version

When it comes to safety, magnetic injection is the preferred method as groundings stays installed at all time. Ease your cable identification routine with ndb’s VCI clamp set.

Part number: VCI-3-3.125 clamps

Clamp opening: 79mm (3.125inches)

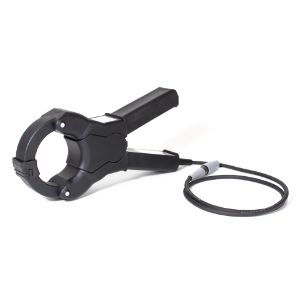

Detector Clamp

Clamp on type sensor with built-in passive filter, used with detector module.

Application: Unipolar cable identification with great immunity to external magnetic fields.

Part number: VCI-3D-CLAMP-BC

Contact ndb Technologies.

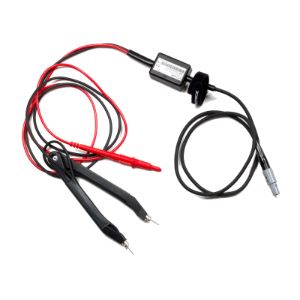

Compass Sensor

Compass type sensor used with detector module.

Application: Open-ended cables without ground­ing (cut cable) ‘’ringing method’’.

Part number: VCI-3DCOMPASS

Contact ndb Technologies.

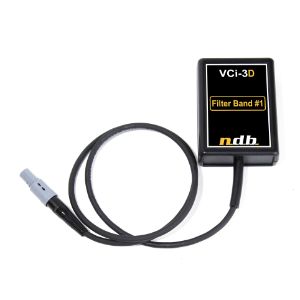

Detector Filter

Helps cancelling floating neutral currents for cable and phase identification.

Part number: VCI-3D-FILTER-BC

Contact ndb Technologies.

Detector V Sensor

High sensitivity differential V shaped sensor used with the detector module.

Application: Paper lead insulated cable identifi­cation (PILC). Rejects neutral signal currents.

Part number: VCI-3DSV

Contact ndb Technologies.
