XDP-II™

Expert partial discharge detector

The well-established XDP-II™ is a battery-operated portable device allowing partial discharge detection and analysis. The data is saved in its internal memory for local or further analysis on the PC-based XDP-SOFT™. Paired with the proper accessories, the XDP-II™ becomes a powerful solution for many applications such as Cable Joints and Elbows, Switchgear, Offline, Acoustic, TEV, Rotating machines, Transformer, etc…



Information

Schedule your free web presentation with an ndb Technologies sales engineer: Click here

  • Easy to use, portable and battery operated
  • pC and dB value display
  • Several display modes for on-site real time analysis and diagnostic
  • Saves the waveform and edge of PD in its memory with the date and time
  • Up to 7.5 hrs autonomy
  • Ultra-versatile instrument
  • Network phase synchronization

Video

Accessories

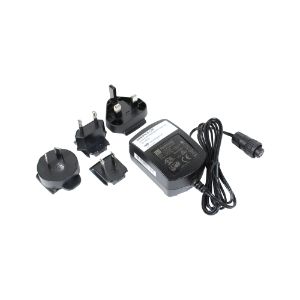

Battery Charger

Replacement battery charger for XDP-II. Plug adapter(s) must be selected.

Part number: DRM-PACK-UNI

Input: 100-240V 50-60Hz

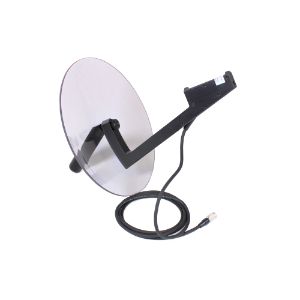

Parabolic sensor

Use the parabolic sensor for corona effect detection on overhead accessories.

Part number: ULD-401

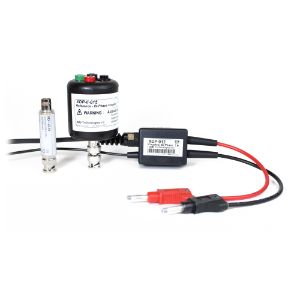

Bi-Phase coupler

Bi-phase coupler for PD detection on switchgear capacitive test port (VIS/VPIS).

Part number: XDP-304

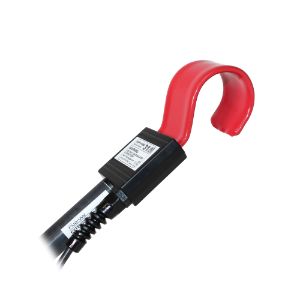

Spatula sensor kit

Spatula sensor for PD detection on cable splice/elbows.

Includes handling rods and test cell.

Part number: XDP-302

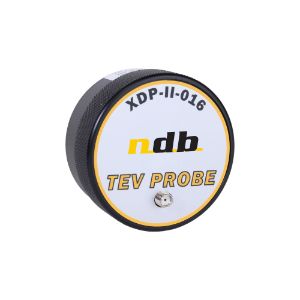

TEV sensor kit

TEV sensor (transient earth voltages) for PD detection on metal clad cabinets.

Includes converter, cables and filter.

Part number: XDP-320

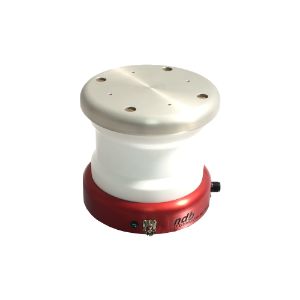

Offline PD test kit

Perform offline PD testing with pC test results.

PD-free AC hipot required.

Part number: XDP-II-OFFLINE-KIT

Up to 50kV peak.

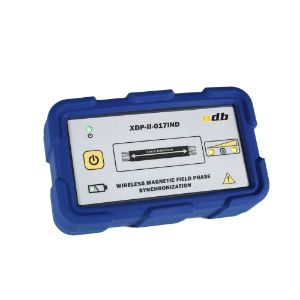

Inductive phase synchronization transmitter kit

Enables phase synchronization in peak-angle mode.

Inductive signal detection.

Part number: XDP-II-017IND

Battery powered.

Phase synchronization transmitter kit

Enables phase synchronization in peak-angle mode.

Includes power cord.

Part number: XDP-II-017-KIT

120-240V 50-60Hz

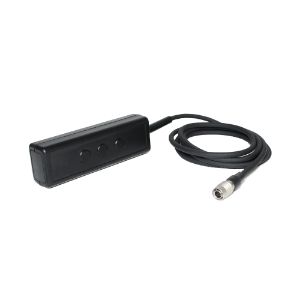

Contact acoustic sensor

Detect PD-related ultrasonic waves on metal clad cabinets.

Part number: XDP-II-406

Magnetically held.
